• Rear axle, 3.42 ratio
• Tow/haul mode selector, button located at end of shift lever
• Transfer case, AWD, electronic automatic system (Not available on 2WD models.)
• All-wheel drive
• Alternator, 160 amps
• Recovery hooks, 2 front, frame-mounted
• Differential, heavy-duty locking rear
• GVWR, 7100 lbs. (3221 kg) (Not available on 2WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• Steering, power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench, stored in rear quarter trim

• Wheels, 4 - 18" x 8" (45.7 cm x 20.3 cm) polished aluminum
• Tires, P265/65R18 all-season, blackwall (Requires (QF8) 4-18" x 8" (45.7 cm x 20.3 cm) polished aluminum wheels.)
• Tire, spare P265/70R17
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Wheel, 17" (43.2 cm) full-size, steel spare
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Luggage rack, roof-mounted, body-color with bright accent
• Luggage rack center rails
• Moldings, body-color bodyside with bright inserts
• Grille, chrome surround
• Assist steps, color-keyed with chrome insert, mounted between the front and rear wheels (Upgradeable to (BRS) power-retractable assist steps.)
• Headlamps, projector beam with automatic exterior lamp control and flash- to-pass feature
• Fog lamps, front round, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color, with integrated turn signal indicators, ground illumination and curb-tilt
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent, RainSense
• Wiper, rear intermittent with washer
• Windshield washer fluid system, heated
• Body, liftgate with liftglass, rear door system with rear-window wiper/washer
• Body, liftgate with liftglass, power rear door system with rear-window wiper/washer

• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer seek-and-scan, digital clock and auto-tone control (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, Bose luxury 10-speaker system with enhanced performance amplification, Audio Pilot noise reduction feature and subwoofer
• XM Satellite Radio, With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media

• Seats, front bucket with leather-appointed seating on first and second rows (including head restraints) 12-way power driver and front passenger seat adjusters, power lumbar control, heated seat cushion and seatbacks, 2- position driver memory, adjustable head restraints, storage pockets and floor console
• Seats, third row 50/50 split-bench with vinyl, 3-passenger, removable, all-belts-to-seat
• Seat adjuster, driver power
• Seat adjuster, front passenger power
• Seats, heated second row
• Seat release, second row bucket, power release only
• Console, floor with storage area, 4 cup holders (2 in front, 2 in rear) and integrated second row audio and HVAC controls
• Cup holders, in front seating area
• Cup holders, in rear of floor console
• Cup holders, driver and passenger-side in third row side trim
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted front and second row, removable
• Acoustical Insulation Package, premium
• Steering wheel, Deluxe, leather-wrapped with wood accents
• Steering wheel controls, mounted audio and cruise controls, includes Driver Information Center controls
• Driver Information Center, full functionality included
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Tire Pressure Monitoring System (does not apply to spare tire)
• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Remote vehicle starter system, includes Remote Keyless Entry
• Pedals, power-adjustable for accelerator and brake, includes (UD7) Rear Parking Assist
• Universal Home Remote, includes garage door opener, 3-channel programmable
• Cruise control, electronic with set and resume speed
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning (Included with (JF4) power adjustable pedals.)
• Theft-deterrent system, vehicle, PASS-Key III
• Door trim, lights on the front doors and side reflectors on the rear doors
• Armrests, driver and passenger doors, padded
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Console, overhead mini with map lights (Includes controls for sunroof, power liftgate and power release second row seats when (CF5) power sunroof, (E61) power liftgate with liftglass and (ARS) second row power seat release is ordered.)
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod, Shale-colored
• Assist handles, front passenger and second row outboard
• Coat hooks, driver- and passenger-side rear seat and cargo area
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Power outlets, 4 auxiliary with covers, 12-volt, 3 in floor console, 1 in cargo area
• Storage bin, behind driver-side rear quarter panel

• StabiliTrak, stability control system with Proactive Roll Avoidance and threshold switch
• Brakes, 4-wheel antilock, 4-wheel disc, hydroboost
• OnStar, 1-year of Directions and Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats

ENGINE, VORTEC 6.2L VARIABLE VALVE TIMING V8 SFI

• (380 hp [283.3 kW] @ 5500 rpm
• 417 lb-ft of torque [563.0 N-m] @ 4400 rpm) (STD)

• Suspension Package
• Autoride
• bi-state variable shock dampening and rear air-assisted load-leveling
• includes (G69) automatic air level control
• Engine
• Vortec 6.2L Variable Valve Timing V8 SFI (380 hp [283.3 kW] @ 5500 rpm
• 417 lb-ft of torque [563.0 N-m] @ 4400 rpm)
• Rear axle
• 3.42 ratio
• Cooling
• auxiliary external transmission oil cooler
• heavy-duty air-to-oil
• Alternator
• 160 amps
• Recovery hooks
• 2 front
• frame-mounted
• Differential
• heavy-duty locking rear
• GVWR
• 7100 lbs. (3221 kg) (Not available on 2WD models.)
• Suspension
• front coil-over-shock with stabilizer bar
• Suspension
• rear multi-link with coil springs
• Trailering equipment
• heavy-duty
• includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• Steering
• power
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tools
• mechanical jack and wheel wrench
• stored in rear quarter trim
• Tire
• spare P265/70R17
• Tire carrier
• lockable outside spare
• winch-type mounted under frame at rear
• Wheel
• 17" (43.2 cm) full-size
• steel spare
• Fascia
• front color-keyed
• Fascia
• rear color-keyed
• Moldings
• body-color bodyside with bright inserts
• Grille
• chrome surround
• Headlamps
• projector beam with automatic exterior lamp control and flash- to-pass feature
• Fog lamps
• front round
• halogen
• Mirrors
• outside heated power-adjustable
• power-folding and driver-side auto-dimming
• body-color
• with integrated turn signal indicators
• ground illumination and curb-tilt
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Windshield washer fluid system
• heated
• Body
• liftgate with liftglass
• rear door system with rear-window wiper/washer
• Body
• liftgate with liftglass
• power rear door system with rear-window wiper/washer
• Audio system feature
• Bose luxury 10-speaker system with enhanced performance amplification
• Audio Pilot noise reduction feature and subwoofer
• Cup holders
• in front seating area
• Cup holders
• in rear of floor console
• Cup holders
• driver and passenger-side in third row side trim
• Floor covering
• color-keyed carpeting
• Floor mats
• color-keyed carpeted front and second row
• removable
• Acoustical Insulation Package
• premium
• Steering column
• Tilt-Wheel
• adjustable with brake/transmission shift interlock
• Steering wheel
• Deluxe
• leather-wrapped with wood accents
• Driver Information Center
• full functionality included
• Instrumentation
• analog with speedometer
• odometer with trip odometer
• fuel level
• voltmeter
• engine temperature
• oil pressure and tachometer
• Warning tones
• headlamp on
• key-in-ignition
• driver and passenger buckle up reminder and turn signal on
• Tire pressure monitoring system (does not apply to spare tire)
• Windows
• power with driver Express-Down and lockout features
• Universal Home Remote
• includes garage door opener
• 3-channel programmable
• Heater
• rear auxiliary with rear passenger heating ducts
• Defogger
• rear-window electric
• Theft-deterrent system
• vehicle
• PASS-Key III
• Door trim
• lights on the front doors and side reflectors on the rear doors
• Armrests
• driver and passenger doors
• padded
• Mirror
• inside rearview auto-dimming with 8-point compass and outside temperature display
• Visors
• driver and front passenger illuminated vanity mirrors
• padded with cloth trim
• extends on rod
• Shale-colored
• Assist handles
• front passenger and second row outboard
• Coat hooks
• driver- and passenger-side rear seat and cargo area
• Storage bin
• behind driver-side rear quarter panel
• StabiliTrak
• stability control system with Proactive Roll Avoidance and threshold switch
• Brakes
• 4-wheel antilock
• 4-wheel disc
• hydroboost
• Air bags
• dual-stage frontal
• driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System
• children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags
• head curtain side-impact
• first and second row outboard seating positions with rollover sensor
• includes third row seating positions with (AS3) 3-passenger third row bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• LATCH system (Lower Anchors and Top tethers for CHildren)
• for child safety seats

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 12
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3550
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2874
• Curb Weight - Rear (lbs): 2513
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1185
• Suspension
• Suspension Type - Front: Coil-over
• Suspension Type - Rear: Multi-Link Coil
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.41
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QXK
• Rear Tire Order Code: QXK
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2105
• Rear Tire Capacity (lbs): 2105
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 77.0
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

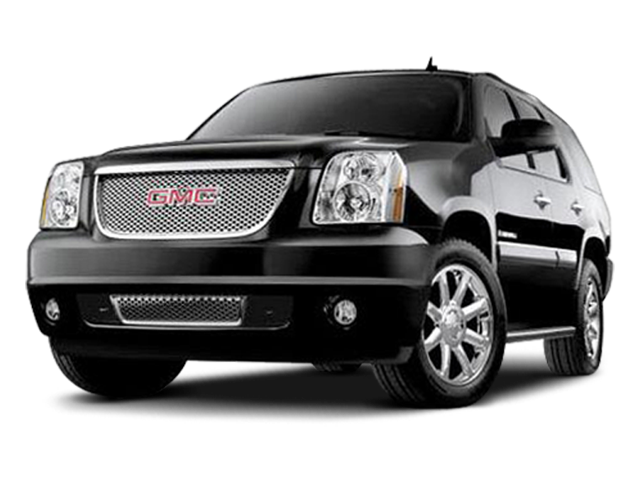

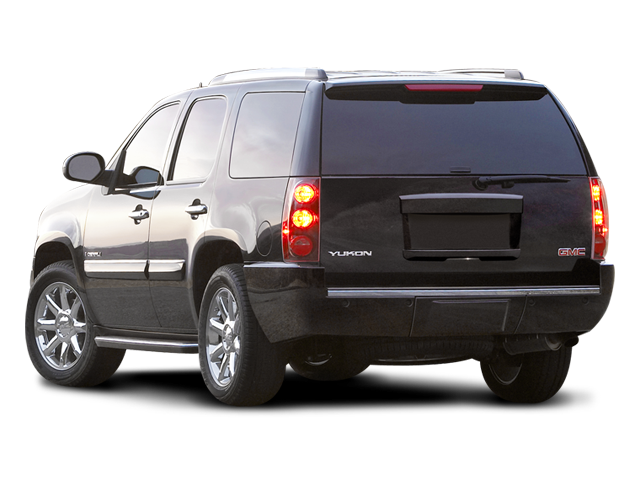

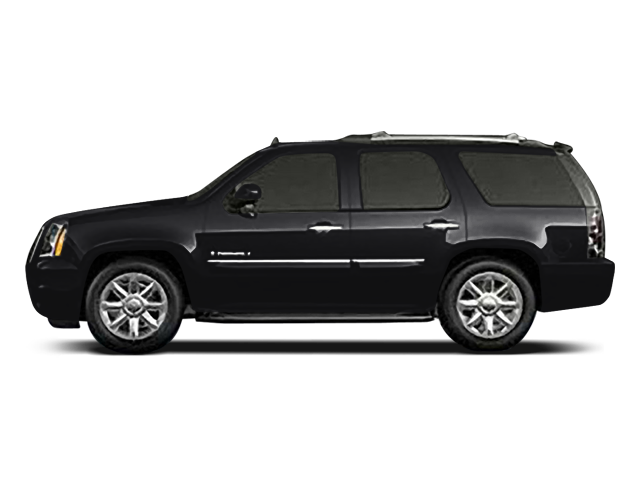

• Vehicle Name: GMC Yukon Denali
• Body Style: 4 Door
• Body Code: E61
